🌲 Chapter 5: WOILD Firmware Deployment & Payload Architecture

The WOILD (Wake On Interrupt Landslide Detector) firmware family is engineered for ultra-low-power edge nodes deployed in high-risk landslide zones. Operating primarily in a deep-sleep state, the microcontroller utilizes hardware interrupt mapping to wake instantly on motion threshold breaches or transmit periodic baseline telemetry over LoRaWAN.

⚡ Power Management & Operational Modes

To maximize solar/battery longevity in field deployments, the WOILD firmware switches between three operational modes governed by onboard hardware interrupts:

Mode ID	Mode Name	Behavior & Power Draw	Transmission Trigger
`0`	Timed Baseline	MCU remains in Deep Sleep (~15µA draw). Wakes briefly via internal RTC timer.	Scheduled heartbeat uplink (e.g., every 60 mins).
`1`	Alert (Threshold)	Accelerometer interrupt fires on motion ($>32\text{ mg}$ threshold). Node enters high-frequency sampling.	Immediate event-driven packet publish.
`2`	Tripwire Interlock	External physical continuity circuit (e.g., breakaway ground cable) snaps or breaks connection.	Instant emergency priority uplink with hardware flag bit set.

📦 Firmware Version Comparison & Selection Guide

Several firmware builds are maintained under https://github.com/wint0178/Modular-Open-Source-Science-Station/tree/main/software/Landslide-Detectors. Choose the version that best matches your deployment needs:

Version	Key Focus & Innovation	OTA Downlink Control	Dynamic Sleep Delays	Ideal Deployment Scenario
v1.1.3	Power Conservation Baseline Dual motion thresholds and low-voltage auto-recovery.	❌ Static	❌ Hardcoded	Simple, static field nodes with standard solar/battery hardware.
v1.1.5	Dynamic NVS & Bitpacked Overhaul Dynamic NVS thresholds and bitpacked payload overhaul.	Yes (2-byte frame)	❌ Hardcoded	Remote nodes needing dynamic threshold and motion tuning over-the-air.
v1.1.6 (Latest)	Full Remote Command & Control Dynamic sleep lookups, OTA tripwire toggling, and NVS persistence.	Yes (2-byte frame)	Yes (Lookup-based)	Recommended for production. Remote nodes where over-the-air parameter tuning is required.

Which Version Should You Implement?

Choose WOILD v1.1.6 (Recommended for Production): Represents the cumulative production release. It adds bi-directional LoRaWAN downlinks, allowing operators to remotely adjust sleep/wake delays (MINIMUM_DELAY_LOOKUP_SEC and TRIP_ALERT_LOOKUP_SEC) and toggle the physical tripwire interlock on/off via TTN without climbing up the mountain to re-flash the MCU. All configuration states are persisted across deep sleep cycles in non-volatile storage (NVS) via the ESP32 Preferences API.
Choose WOILD v1.1.5 (Dynamic Threshold Tuning): Adds NVS flash persistence (Preferences API) to store dynamic motion settings across sleep cycles and processes 2-byte LoRaWAN downlinks to dynamically update Motion Threshold ($0–224\text{ mg}$), Software Gate ($0–224\text{ mg}$), and Duration Index ($10–2000\text{ ms}$).
Choose WOILD v1.1.3 (Minimalist Baseline): Offers a lightweight, non-configurable baseline. It introduces two separate gravitational thresholds (wake-on-interrupt vs. transmit-on-motion) and enters an automatic 20-hour low-voltage hibernation mode if the battery drops below $3.0\text{V}$, giving small solar panels time to recharge the cell without brownout loops.

⚙️ Prerequisites & Environment Setup

Before compiling and flashing the WOILD firmware, configure your local development environment:

IDE Requirement: Arduino IDE v2.0+ or VS Code with the PlatformIO extension.
Core Board Support: Install your microcontroller target architecture via Tools → Board → Boards Manager (e.g., ESP32, SAMD21, STM32, or AVR depending on your hardware build).
Required Libraries: Install the following dependencies via Tools → Manage Libraries:
- Inclinometer / Accelerometer: ADXL345, LIS3DH, or MPU6050
- Environmental Sensors: DHT, SHT3x, or BME280
- LoRaWAN Communications: MCCI LoRaWAN LMIC library or RadioHead

🚀 Node Firmware Deployment

Follow this step-by-step procedure to configure, compile, and flash WOILD field nodes.

Step 1: Configure Node Network Identifiers

Navigate to https://github.com/wint0178/Modular-Open-Source-Science-Station/tree/main/software/Landslide-Detectors/ and open the primary .ino sketch file for your chosen version.

Step 2: Compile & Flash Microcontroller

Connect the node to your workstation using a data-rated USB cable.
Select your target board under Tools → Board and select the active port under Tools → Port.
In the Tools menu, enable “Erase all flash before sketch upload” and select your desired LoRa frequency (e.g., US915).
Click Verify (Checkmark icon) to confirm dependencies resolve cleanly.
Click Upload (Right arrow icon) to write the compiled binary payload to node flash memory.

Step 3: Node Provisioning in TTN

In the TTN Console, select Add and then Enter end device specifics manually. Set the parameters as follows:
- Frequency Plan: United States 902-928 MHz, FSB 2
- LoRaWAN Version: 1.1.0
- Regional Parameters Version: 1.1 revision B
- JoinEUI: Enter all zeros (00 00 00 00 00 00 00 00).
Select Confirm to proceed.
Click Generate for DevEUI, AppKey, and NwkKey. Name your device using lowercase letters and hyphens with no spaces (e.g., my-new-device), then click Register end device.

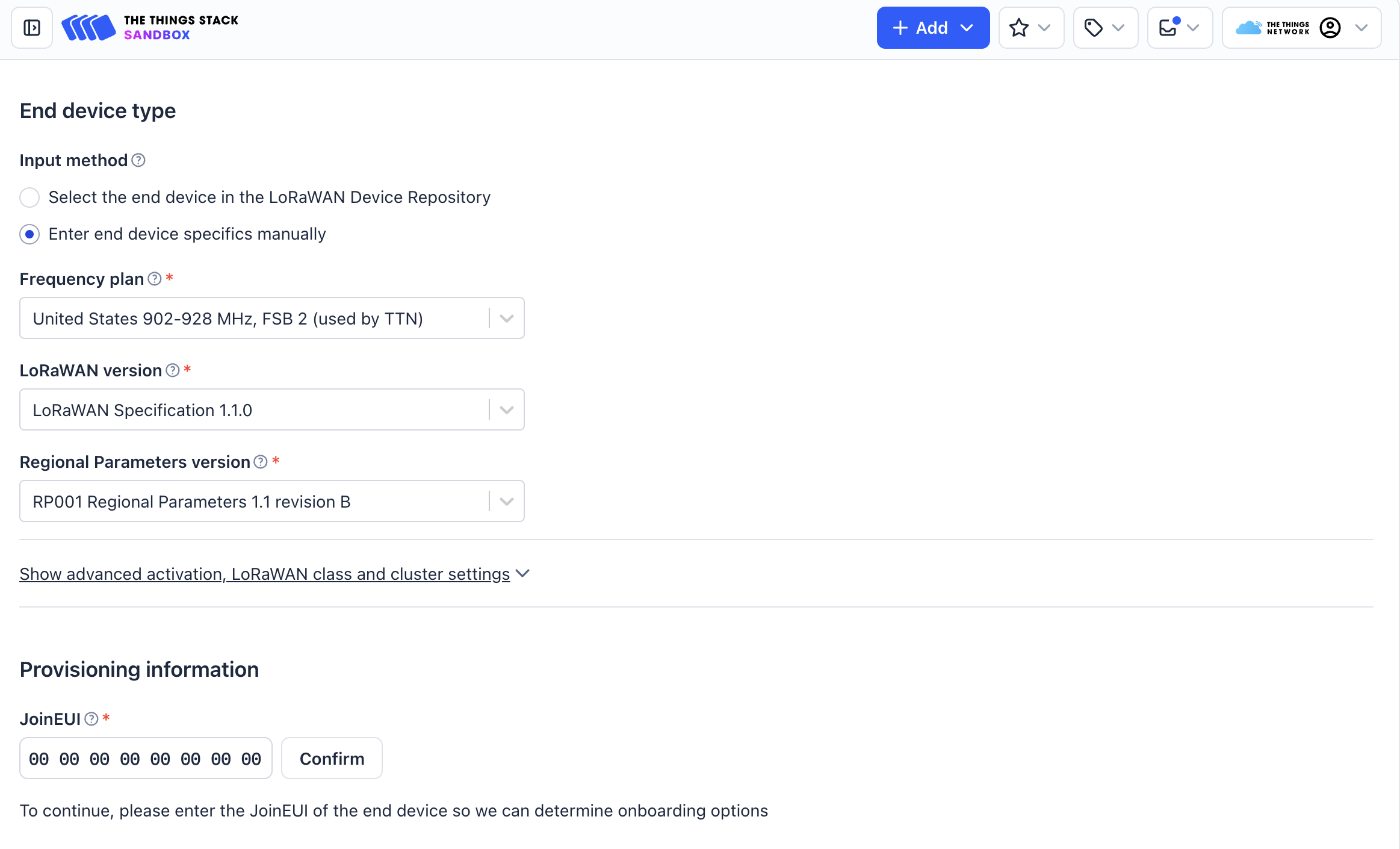

TTN Node Provisioning

Step 4: Deploy TTN / ChirpStack Payload Decoder

Open the software directory where your chosen firmware is located, open the .js payload formatter file, and copy the code.
Log into your The Things Network (TTN) Console or ChirpStack server.
Navigate to Applications → [Your Application] → Payload Formatters → Uplink.
Select Custom JavaScript, paste the script, scroll to the bottom to locate where the node ID is established, change it to a unique value (e.g., LD01, LD02, LD03, etc.), and click Save Changes.
Repeat this process with the downlink formatter if one is provided for your firmware version.

Step 5: Post-Flash Verification & Initial Join

Open the Arduino Serial Monitor set to 115200 baud.
Verify initialization messages. The device will wait for the TTN provisioning IDs. Enter them when prompted:
- Frequency: US915
- Subband: 2
- DevEUI: 0000000000000000
- AppKey: YOUR_APPKEY formatted as 12345678910112131415161718192021
- NwkKey: YOUR_NWKKEY formatted as 12345678910112131415161718192021
The node will attempt to join TTN and send its first transmission. Monitor and verify the join sequence in the Arduino Serial Monitor and in the TTN Live Data feed.

Step 6: Establish Calibration & Static Baselines

Secure your hardware node inside its static field tracking enclosure.
Run the initial calibration test routine to calculate resting 2D surface angles.
If onboard EEPROM auto-calibration is disabled, hardcode these baseline offsets directly into the global node configuration parameters.
Once verified, the node is ready for field mounting.

🛠️ Payload Specification (WOILD v1.1.6)

To maximize battery life and comply with LoRaWAN Fair Use airtime limits, WOILD v1.1.6 packs sensor telemetry, device diagnostics, and interrupt configuration states into an ultra-dense 8-byte binary frame:

Byte	Field	Bit Allocation & Range	Physical Resolution / Function
0	Nonce	Bits 0–7	8-bit Execution Nonce (Frame tracking & replay prevention)
1	Config Indices	Bits 0–2: `cfg_motion` Bits 3–5: `cfg_sw` Bits 6–7: `dur_low2`	Motion Threshold ($32\text{ mg}$ steps) Software Threshold ($32\text{ mg}$ steps) Duration lower 2 bits
2	Battery Voltage	Bits 0–7	Voltage Range: $2.0\text{V} - 4.55\text{V}$ ($0.01\text{V}$ step resolution)
3	Angle X (Upper)	Bits 0–7	Upper 8 bits of 9-bit signed X-axis tilt angle
4	Angle Y (Upper)	Bits 0–7	Upper 8 bits of 9-bit signed Y-axis tilt angle
5	Shared Control Byte	Bit 0: `x_lsb` Bit 1: `y_lsb` Bits 2–3: `stateMode` Bit 4: `dur_top1` Bits 5–7: `vector_3bit`	LSB for X Angle LSB for Y Angle System Mode ($0=\text{Timed}, 1=\text{Alert}, 2=\text{Tripwire}, 3=\text{Reserved}$) Duration Bit 2 ($1–15\text{ ms}$ lookup) Peak Dynamic Vector ($8\text{ mg}$ steps)
6	Humidity	Bits 0–7	Relative Humidity ($1%$ resolution, $0–100%$)
7	Temp & Flags	Bits 0–5: Temperature Bit 6: `use_tripwire` Bit 7: Reserved	On-chip Temperature ($0–63^\circ\text{C}$, $1^\circ\text{C}$ resolution) Tripwire hardware interlock state flag

📊 Home Assistant Sensor Templates (YAML)

To render WOILD telemetry into active entities within Home Assistant, append some or all of the provided YAML configurations to your respective Home Assistant files using the File Editor add-on (e.g., adding these template definitions to configuration.yaml or templates.yaml). All provided YAML files are located in the software directory.

template:
  - sensor:
      - name: "Node 01 Battery Voltage"
        unique_id: "woild_node_01_battery"
        unit_of_measurement: "V"
        device_class: "voltage"
        state: "{{ state_attr('sensor.woild_node_01_telemetry', 'battery_v') }}"

      - name: "Node 01 Tilt X-Axis"
        unique_id: "woild_node_01_tilt_x"
        unit_of_measurement: "°"
        state: "{{ state_attr('sensor.woild_node_01_tilt_x') }}"

      - name: "Node 01 Tilt Y-Axis"
        unique_id: "woild_node_01_tilt_y"
        unit_of_measurement: "°"
        state: "{{ state_attr('sensor.woild_node_01_tilt_y') }}"

      - name: "Node 01 System Mode"
        unique_id: "woild_node_01_mode"
        state: >-
          {% set mode = state_attr('sensor.woild_node_01_telemetry', 'stateMode') %}
          {% if mode == 0 %} Timed Baseline
          {% elif mode == 1 %} Alert Event
          {% elif mode == 2 %} Tripwire Interlock
          {% else %} Unknown
          {% endif %}
        icon: "mdi:shield-alert"

👉 Proceed to Chapter 6: Field Deployment
